Stepped
Lid Design
Guide
If
you would like more information or an estimate, please print
out the following diagram, write in your specifications,
and fax to us at 858-228-9728.

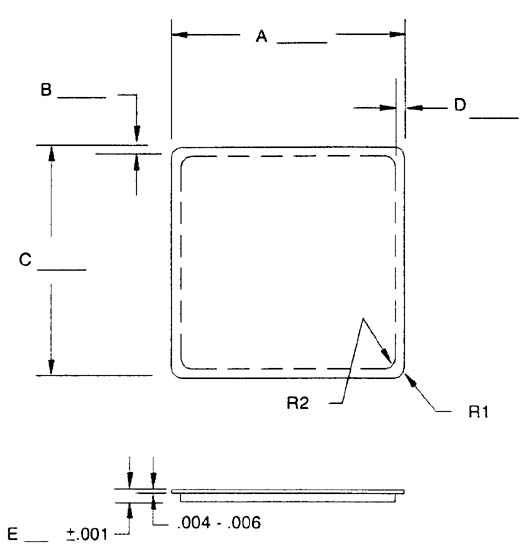

| A
+ C = Package O.D. - .005 |
| B
+ D = Package Wall + .010 |
| R1
= Outside Radius of Package - .003 |
| R2
= Inside Radius of Package + .015 |
| E
= .010 or .015 Standard |
|
Tolerances:
+/- 0.05 Unless Otherwise Indicated
|
| Material:
LID - F-15 Alloy |
|
