Combination
Lid Design
Guide
Flat
Lid with Au/Sn Preform Attached
If
you would like more information or an estimate, please print
out the following diagram, write in your specifications,
and fax to us at 858-228-9728.

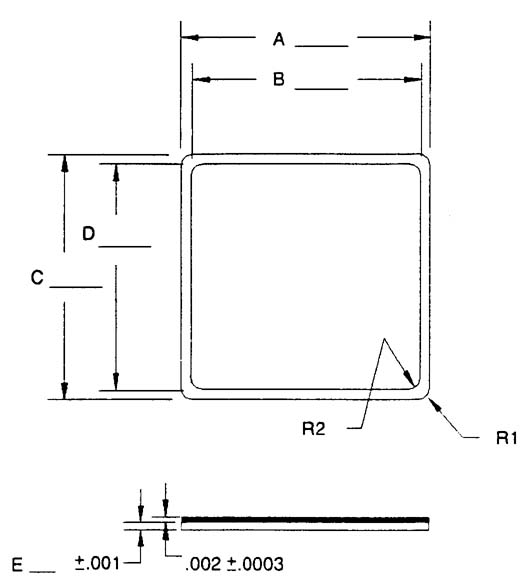

| A
+ C = Package O.D. - .005 |
| B
+ D = Same as Internal Length and Width
of Package |
| R1
= Same as Outside Radius of Package |
| R2
= Same as Inside Radius of Package |
| E
= .010 or .015 Standard |
|
Tolerances:
+ / - 0.05 Unless Otherwise Indicated
|
| Material:
Preform - 80% Gold 20% Tin Lid - F-15
Alloy |
